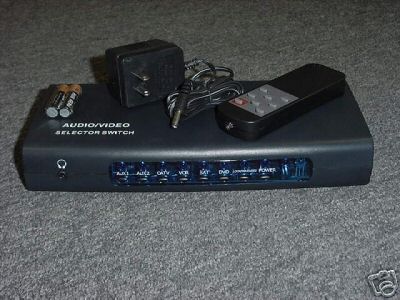

<b>S-Video Audio/Video Selector Switch w/Remote Control, 6 in 1</b>

S-Video Audio/Video Selector Switch w/Remote Control, 6 in 1

Connects up to 6 components such as satellite receivers, DVD players, CATV, VCRs, Camcorders, Video game etc...

Most television does not have enough inputs to handle the video products on the market today. The video source selector provids extra s-vhs and composite inputs needed to hook up all the video products.

The video source selector serves as switch box that connects multiple (up to 6)audio/video components to your TV. It allows you to quickly and easily select which audio/video source you wish to use, without disconnecting and reconnecting your components. Once connected, you can switch between components using the buttons on the front panel of the source selector or by using the remote control that came with your audio/video component.


  • 6 inputs and 1 outputs with s-video jack terninals

  • Video/Audio Ports: RCA jack

  • With built-in microproccessor

  • Using infrared remote control or nanual switch select inputs A/V sources

  • Build-in amplifier to compensate transmission loss

  • Front panel LED channel indicator

  • Can be operated with any univesal remote control

  • 2 x AAA batteries included

  • Easy to use


  • Frequency Range: 20Hz-10MHz

  • Input/Output Impedance: 75 ohm (video), 47k ohm (audio)

  • Input Level: 1Vp-p (video), 0.4v (audio)

  • Insertion Loss: 0.6dB

  • Power Supply: 230V AC-110V AC or 9VDC

  • Remote Control Range: 10m

  • Remote control Power: 2 batteries: AAA included

    S-Video Audio/Video Selector Switch w/Remote Control, 6 in 1 Model:200-95$29.95
