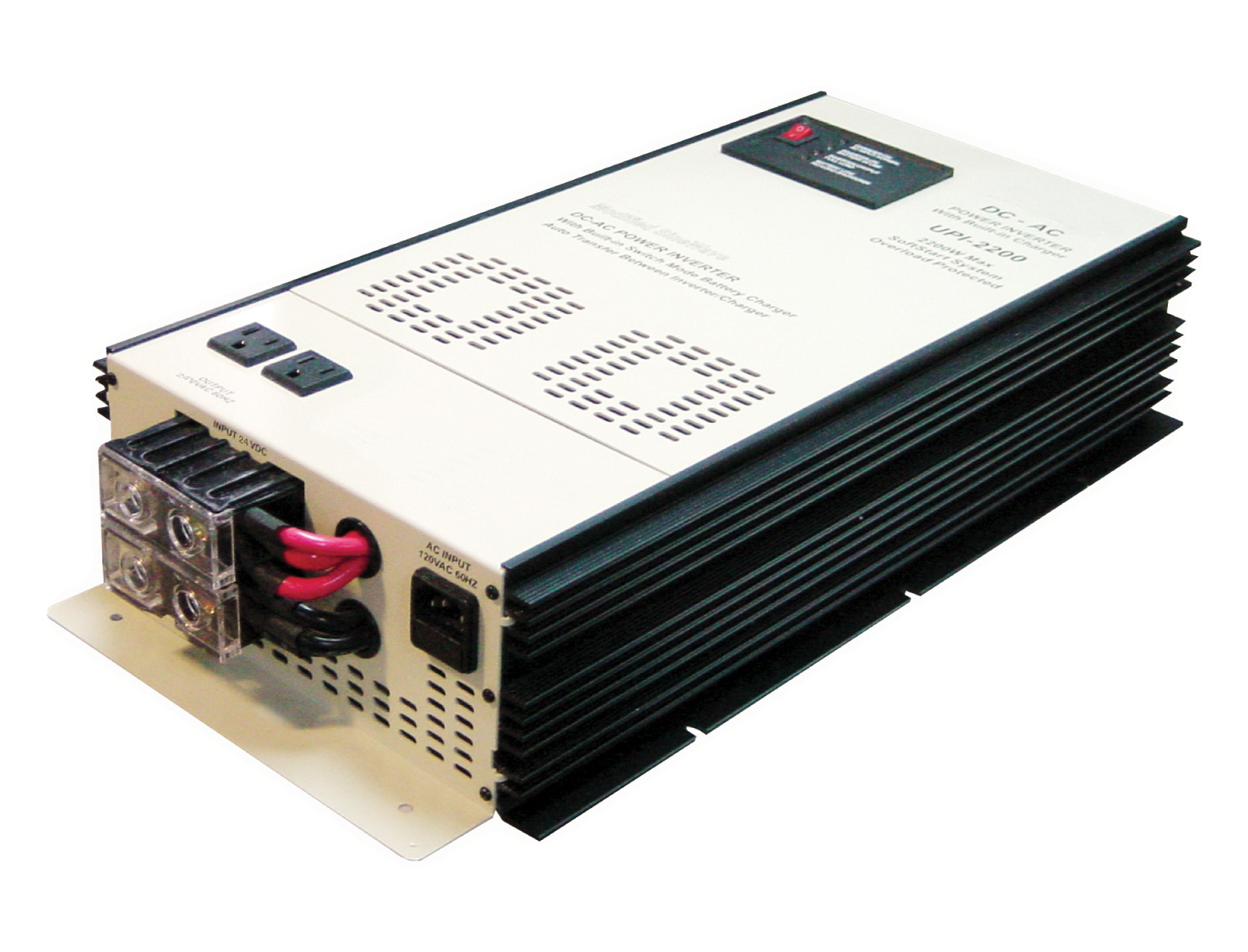

2200/4000 Watt Power Inverter (24V DC to 110/120V AC) with Built in Charger Function, w/Wireless Remote Control
Please note: This inverter is for 24V DC not 12V DC. Please make sure you order to correct unit. We also have the 12V DC, You can check our products.
100% Excellent quality.
Power Express Brand (same factory as Coleman)
Unit in a Power Express factory beautiful/colorful gift box
AC power cord (included)
Wireless Remote Control Switch (Transmitter & Receiver included)
Line cord for the remote control (included)
The dual power inverter with charger function is the combination of inverter and battery charger. They are ideal for places or homes whereby the power supply from the power plant is constantly disrupted from time to time. It is also good to use as emergency power back up from unforeseen happening such as storms, rolling black out & other power outage. This inverter, once set up, will provide you with undisrupted power supply up to 2200W continuous. So that one can continue with his usual living without much hassle.
The dual power inverter will require connections from
1) The AC power input (110/120V AC), usually from your household incoming power line &
2) DC power input (24V DC), usually from your battery bank.
Once Properly connected, the system will automatically sense both inputs. When AC power is available, the system will provide AC power from supply as is up to 2200W. As soon as the power is disrupted, the inverter will immediately activate the system and covert DC power from the battery bank to AC for load usage. Once power is restored, the inverter will go back to AC supply from power line but at the same time charge back the battery to full capacity for the power that has been used up during power outage
Specifications:
Continuous output power: 2200 Watt
Surge Power: 4000 Watt
Output voltage: Dual 110/120V AC RMS +/-5%
Frequency: 60Hz +/-1%
Wave form: Modified sine wave
Efficiency: 90%
DC input: 24 Volt
27.6V DC nominal (21-30V) operative
Protections:
AC input---
Input: Fuse.
DC input---
Over voltage: Inverter can not start up
24 V system: Inverter cut-off if input > 30VDC.
Under voltage: Inverter can not start up
24 V system: Inverter cut-off if input < 20VDC.
Output---
Overload: Inverter shutdown and auto restart if output load has been reduced.
Temperature---
Over temperature: Inverter shutdown if > 70 degree C and auto restart if temperature < 50 degree C.
Model: PE2200WC-24-110
Features:
No load defect on/off switch
Power on/off switch
AC output receptacle
LED indication
AC input socket
Remote control interface
Model #: PE-2200WC-24-110
Availability:
Order place by 2:PM (EST) wil be ship the Same Business Day!
|
|
