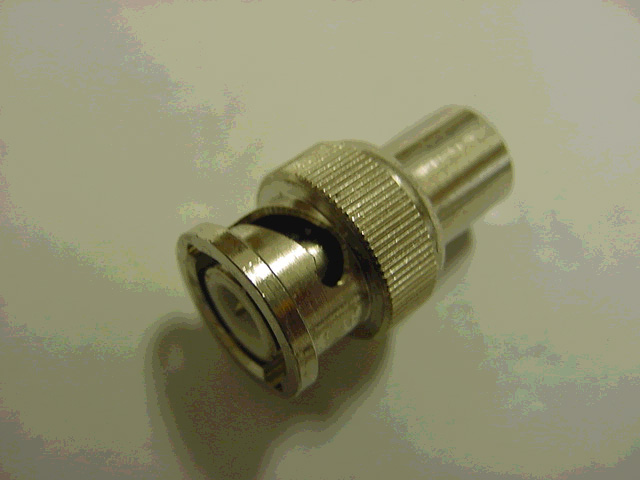

BNC Terminator, 75 ohms
75 ohms, .5W @ 1%
Materials:
Body housing: Brass
Male contact: Brass, gold plated
Gasket: Silcone rubber
Electrical Specifications:
Nominal impedance: 50 ohms
Frequency range: 0 - 4 GHz
Voltage rating; AC 500V
Withstanding voltage: 1500 votls RMS
Insulation resistance: 5000 megohms min.
Temperature range: 67 degree to 390 degree F.
Vibration: Mil. Std. 202 method 204
Shock: Mil. Std. 202 method 202
Moisture resistance: Mil. Std. 202 method 105
|
|
