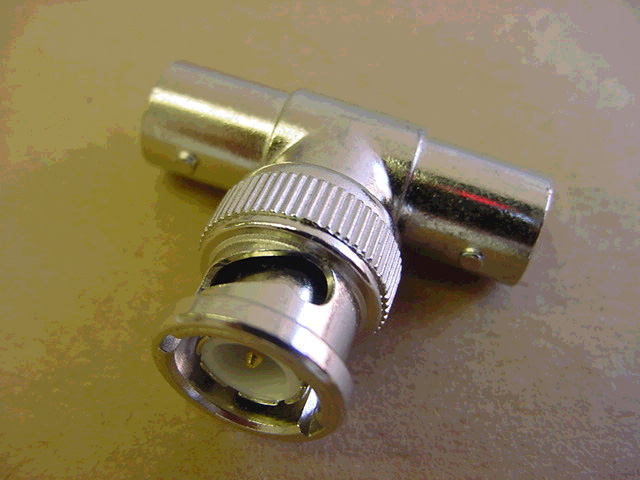

<b>BNC T-Adapter, 1 Male to 2 Female</b>

BNC T-Adapter, 1 Male to 2 Female

  • 1 Male to 2 Female T-adapter.

    Materials:
  • Body housing: Brass
  • Male contact: Brass, gold plated
  • Female contact: Brass, gold plated
  • Gasket: Silcone rubber

    Electrical Specifications:
  • Nominal impedance: 50 ohms
  • Frequency range: 0 - 4 GHz
  • Voltage rating; AC 500V
  • Withstanding voltage: 1500 votls RMS
  • Insulation resistance: 5000 megohms min.
  • Temperature range: 67 degree to 390 degree F.
  • Vibration: Mil. Std. 202 method 204
  • Shock: Mil. Std. 202 method 202
  • Moisture resistance: Mil. Std. 202 method 105


    BNC T-Adapter, 1 Male to 2 Female Model: BC-309 --$0.85
