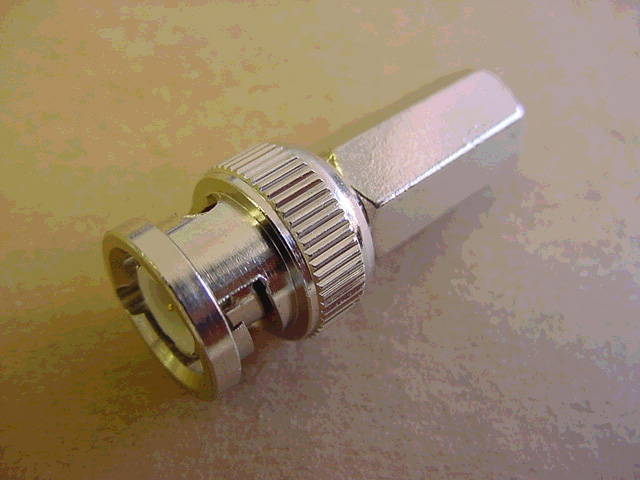

<b>BNC Male Twist on Type, RG-59, 1 Pc. Construction</b>

BNC Male Twist on Type, RG-59, 1 Pc. Construction

  • BNC male twist on type for RG-59 cable.

    Materials:
  • Body housing: Brass
  • Male contact: Brass, gold plated
  • Gasket: Silcone rubber

    Electrical Specifications:
  • Nominal impedance: 50 ohms
  • Frequency range: 0 - 4 GHz
  • Voltage rating; AC 500V
  • Withstanding voltage: 1500 votls RMS
  • Insulation resistance: 5000 megohms min.
  • Temperature range: 67 degree to 390 degree F.
  • Vibration: Mil. Std. 202 method 204
  • Shock: Mil. Std. 202 method 202
  • Moisture resistance: Mil. Std. 202 method 105


    BNC Male Twist on Type, RG-59, 1 Pc. Construction Model: BC-360 --$0.85
