Click to enlarge<b>BNC Male to F Female</b>

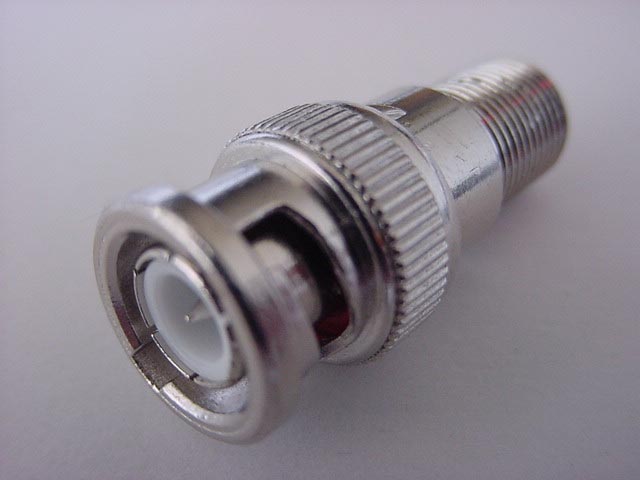

BNC Male to F Female

Materials: Body housing: Brass BNC male contact: Brass, gold plated Gasket: Silcone rubber

Electrical Specifications: Nominal impedance: 50 ohms Frequency range: 0 - 4 GHz Voltage rating; AC 500V Withstanding voltage: 1500 votls RMS Insulation resistance: 5000 megohms min. Temperature range: 67 degree to 390 degree F. Vibration: Mil. Std. 202 method 204 Shock: Mil. Std. 202 method 202 Moisture resistance: Mil. Std. 202 method

BNC Male to F Female Model: BC-526$0.55
