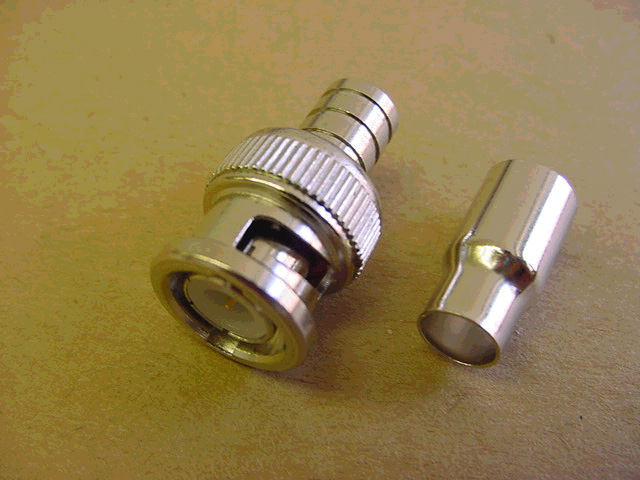

BNC Male Crimp on Type, RG-6, 2 Pc. Construction

BNC Male Crimp on Type, RG-6, 2 Pc. Construction

  • BNC Male 2 pc. crimp on type for RG-6 cable.

    BNC connectors are miniature, light-weight and durable units suitable for a wide range of applications. Mating is by a 2-stud bayonet lock.


    Materials:
  • Body housing: Brass
  • Male contact: Brass, gold plated
  • Crimp ferrule: Copper
  • Gasket: Silcone rubber

    Electrical Specifications:
  • Nominal impedance: 50 ohms
  • Frequency range: 0 - 4 GHz
  • Voltage rating; AC 500V
  • Withstanding voltage: 1500 votls RMS
  • Insulation resistance: 5000 megohms min.
  • Temperature range: 67 degree to 390 degree F.
  • Vibration: Mil. Std. 202 method 204
  • Shock: Mil. Std. 202 method 202
  • Moisture resistance: Mil. Std. 202 method 105


    BNC Male Crimp on Type, RG-6, 2 Pc. Construction Model: BC-330 --$0.99
