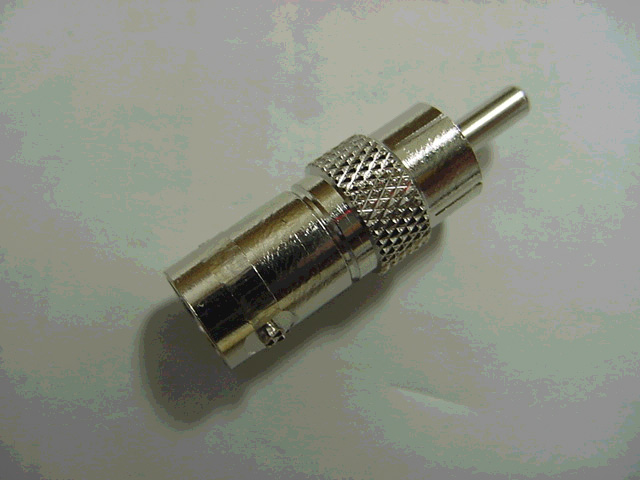

Click to enlarge<b>BNC Female to RCA Male</b>

BNC Female to RCA Male

  • BNC female to RCA male adapter.

    Materials:
  • Body housing: Brass
  • BNC female contact: Brass, gold plated
  • Gasket: Silcone rubber

    Electrical Specifications:
  • Nominal impedance: 50 ohms
  • Frequency range: 0 - 4 GHz
  • Voltage rating; AC 500V
  • Withstanding voltage: 1500 votls RMS
  • Insulation resistance: 5000 megohms min.
  • Temperature range: 67 degree to 390 degree F.
  • Vibration: Mil. Std. 202 method 204
  • Shock: Mil. Std. 202 method 202
  • Moisture resistance: Mil. Std. 202 method


    BNC Female to RCA Male Model: BC-522$0.75
