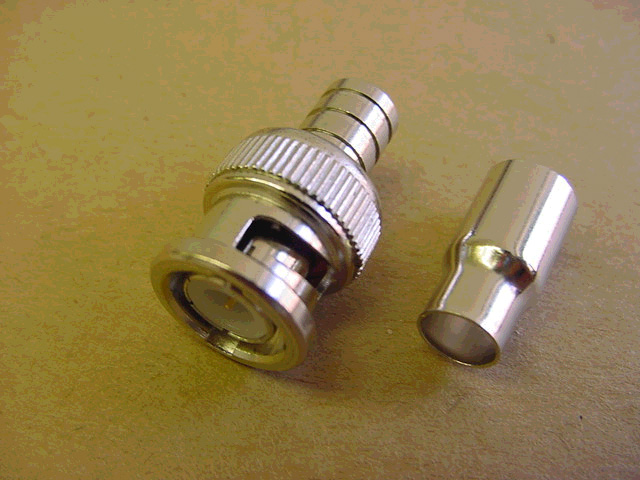

BNC Male Crimp on Type, RG-59, 2 Pc. Construction
BNC Male 2 pc. crimp on type for RG-59 cable.
BNC connectors are miniature, light-weight and durable units suitable for a wide range of applications. Mating is by a 2-stud bayonet lock.
Body housing: Brass
Male contact: Brass, gold plated
Crimp ferrule: Copper
Gasket: Silcone rubber
Nominal impedance: 50 ohms
Frequency range: 0 - 4 GHz
Voltage rating; AC 500V
Withstanding voltage: 1500 votls RMS
Insulation resistance: 5000 megohms min.
Temperature range: 67 degree to 390 degree F.
Vibration: Mil. Std. 202 method 204
Shock: Mil. Std. 202 method 202
Moisture resistance: Mil. Std. 202 method 105
